Authorized Nikon Metrology Partner

Non-contact 3D metrology

Measure large parts at production speed.

Nikon Laser Radar, gap & flush gauges and laser projection systems—specified, integrated and supported by one metrology team, from feasibility study to shop-floor automation.

APPLICATION / 01

Large-volume inspection

Non-contact measurement for large parts and assemblies.

Learn more
MEASURING RANGEUp to 50 m (MV450)
CONTACTNone—no targets or probes
DEPLOYMENTLab, line-side or robot cell
SUPPORTLocal application engineers

01 — Products

Three product lines for every stage of large-part quality.

Discuss your application →

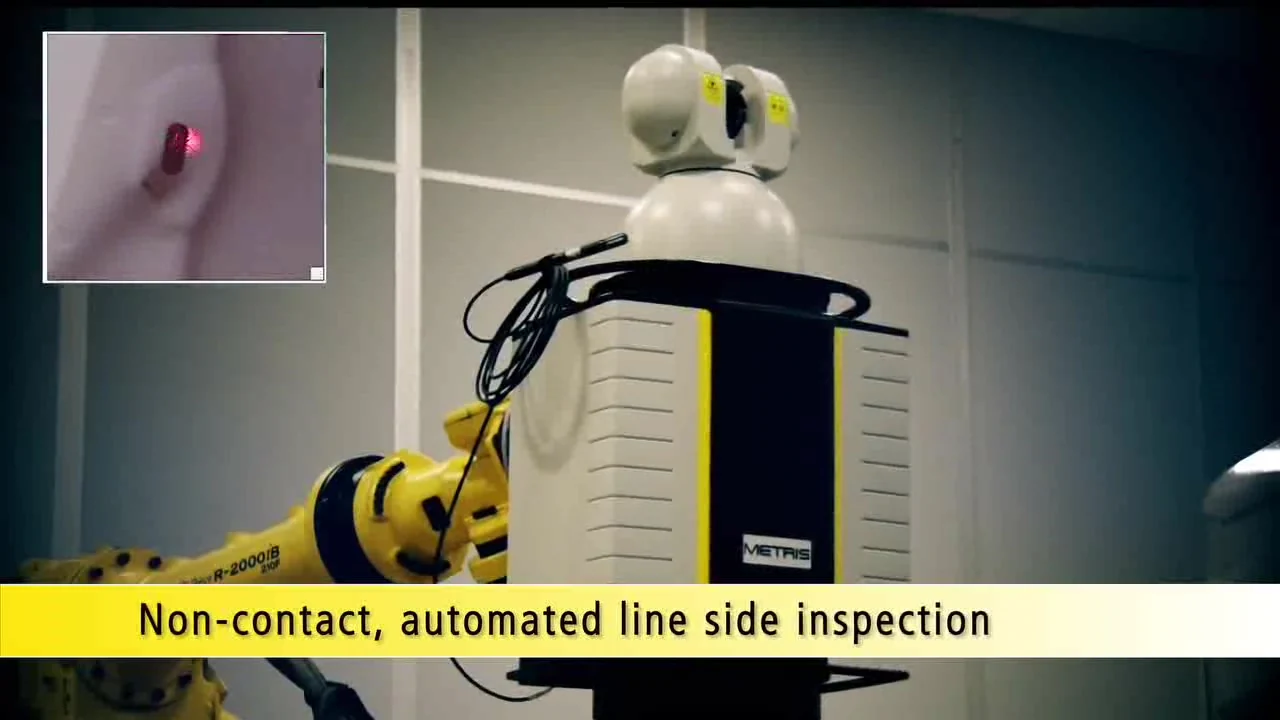

Nikon Laser Radar mounted on a robot for non-contact inspection

LARGE-VOLUME 3D MEASUREMENT

Nikon Laser Radar

Automated, non-contact measurement of features and surfaces on car bodies, aircraft structures and large assemblies—without targets or probes.

Explore Laser Radar →

FIT & FINISH INSPECTION

Gap & Flush Gauges

Handheld and robot-mounted laser gauges measure gap, flush and profile on closures and panels in seconds, with traceable results.

Explore Gap & Flush →

DIGITAL TEMPLATING

Laser Projection Systems

Project CAD outlines directly onto tools and parts to guide composite ply layup, drilling, assembly and painting.

Explore Laser Projection →

Laser Radar

Direct measurement of surfaces and features

Watch the demonstrations →
Robot-mounted Laser Radar in the supplied inspection demonstration

Laser Radar measures parts without a contact probe or a target attached to each measurement point. Programmed inspection sequences can combine surface measurements with features such as holes, slots, studs and weld nuts.

  • Flexible positioning. A robot repositions the instrument to extend coverage and reach features from different viewpoints.
  • Repeatable inspection plans. Reuse programmed measurement locations across successive parts.
  • CAD comparison. Compare measured geometry with nominal geometry to support dimensional inspection and assembly.

Measurement coverage, accuracy and cycle time depend on the instrument, part geometry and cell configuration. A feasibility study establishes the requirements for each application.

Discuss your measurement task →

02 — Solutions

Inspection layouts built around your production process

Configure Laser Radar for offline inspection, a line-side bypass station or an integrated production cell. Select the arrangement around part access, inspection coverage and available cycle time.

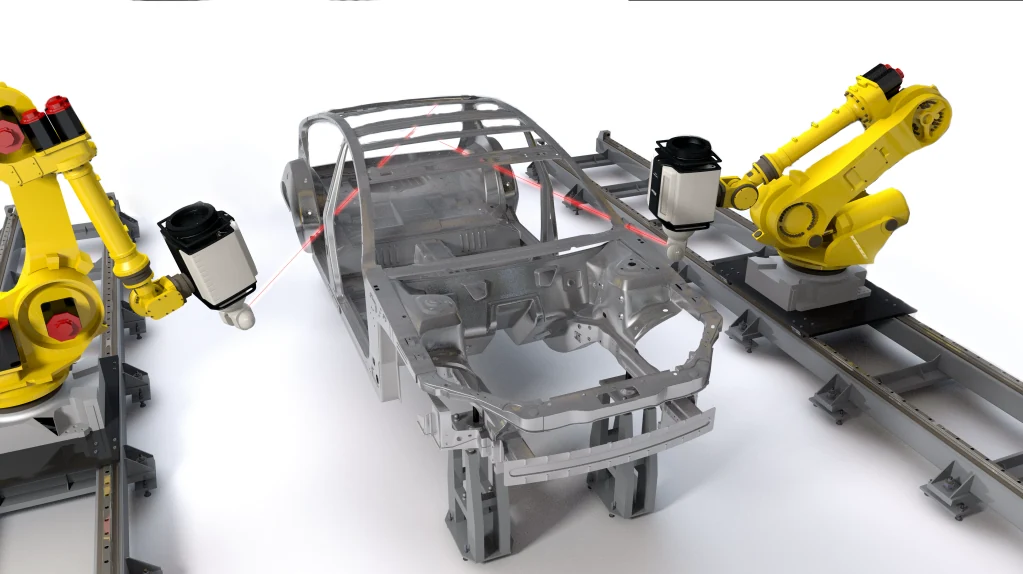

Offline inspection cell layout from the supplied Laser Radar application presentation

Dedicated cell · Flexible fixtures

Offline inspection

Robot-mounted instruments and flexible part fixtures support body-in-white and component inspection in a dedicated measurement cell.

Discuss this configuration →

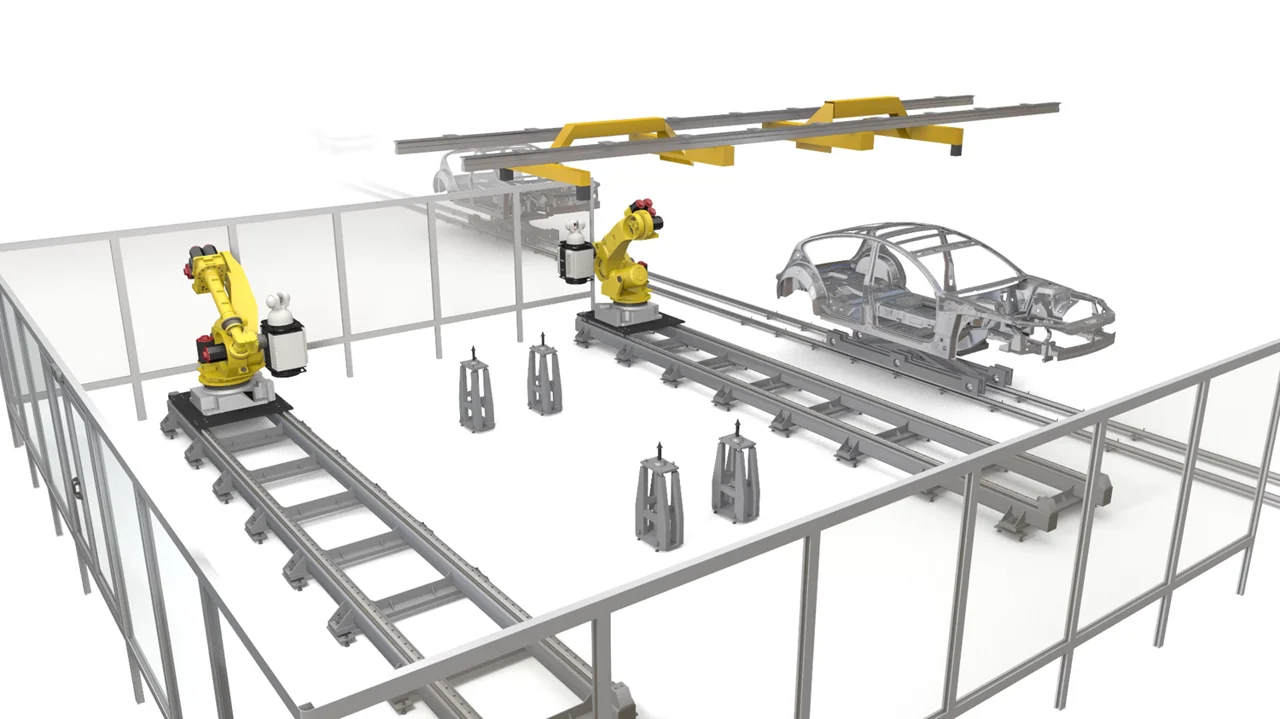

Line-side bypass inspection cell layout from the supplied Laser Radar application presentation

Line-side station · Dimensional monitoring

Line-side bypass inspection

A station beside the production line provides a separate inspection route for dimensional monitoring, without placing every measurement operation in the main process.

Discuss this configuration →

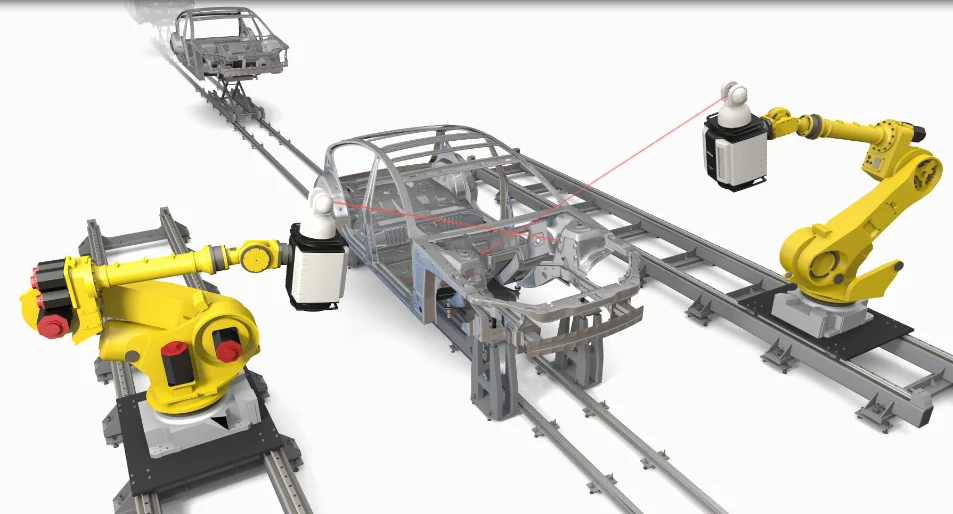

Inline inspection cell layout from the supplied Laser Radar application presentation

Integrated cell · Coordinated automation

Inline inspection

Integrate measurement with part handling and robot motion. Define feature coverage and validate the measurement cycle against the production requirements.

Discuss this configuration →

More large-part applications

Measurement and alignment tasks across aircraft structures and energy systems.

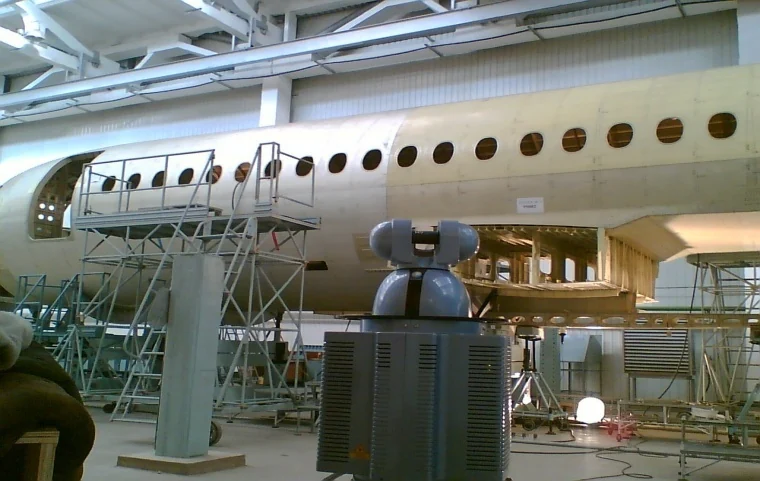

Aircraft structures & assembly application shown in the supplied presentation

Aircraft structures & assembly

Inspect large aircraft components, compare fuselage surfaces to CAD and measure interfaces for assembly alignment.

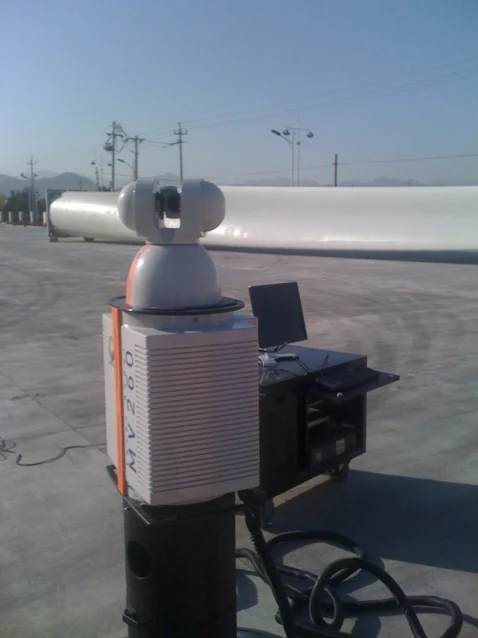

Wind turbine blades application shown in the supplied presentation

Wind turbine blades

Inspect blade geometry and digitize large surfaces for dimensional analysis and reverse engineering.

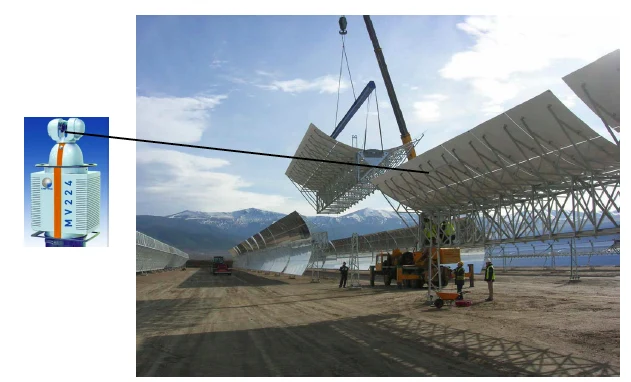

Solar reflector alignment application shown in the supplied presentation

Solar reflector alignment

Measure reflector geometry and installation angles to support alignment of solar mirror assemblies.

03 — How we work

A measured path from question to production.

  1. STEP 1

    Consultation

    We review your parts, tolerances, cycle time and existing process.

  2. STEP 2

    Feasibility study

    Your parts measured in our demo center, with a capability report.

  3. STEP 3

    Integration

    Installation, programming, robot and MES integration, and acceptance.

  4. STEP 4

    Training & support

    Operator training, calibration and service agreements for uptime.

Application videos

See the inspection process in motion

CELL ANIMATION · 1 MIN 30 SEC

Automated body-in-white inspection

An animation of a multi-robot cell shows the vehicle body, part handling and instrument positions during an automated inspection sequence.

Open video →

EQUIPMENT DEMONSTRATION · 46 SEC

Robot-mounted Laser Radar

See non-contact feature inspection, including holes, studs and weld nuts, and robot movements that bring the instrument into different measurement positions.

Open video →

The videos illustrate example configurations. Performance figures shown in the footage apply to those demonstrations; confirm suitability and specifications for your application with our team.

04 — Services & support

Support for the full life of your system.

Calibration & maintenance

Scheduled calibration, preventive maintenance and repair support.

Training

Operator, programmer and advanced metrology courses.

Software & programming

Inspection programs, CAD alignment and reporting templates.

Parts & upgrades

Genuine accessories and hardware or software upgrades.

Send us a part. We'll show you the data.

Book a feasibility study or a live demo with our application team.
